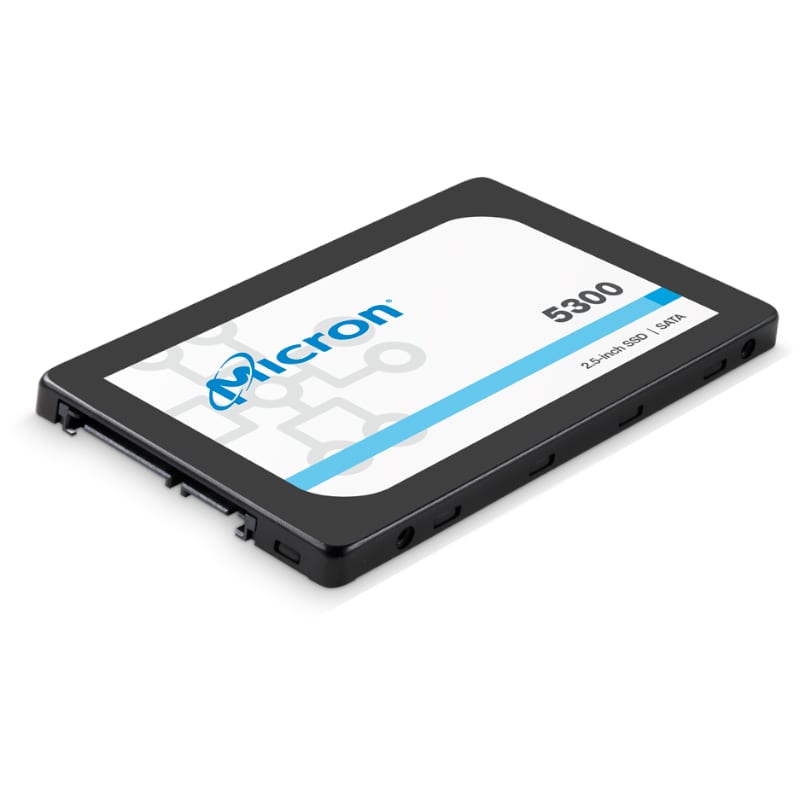

Micron 5300 MAX 1.92TB 2.5" SSD Non-SED

Description

Built with Micron’s innovative 96-layer 3D TLC NAND, the Micron 5300 series combines the latest in NAND technology and a proven architecture to provide performance upgrades now and a path forward for moving to an all-flash future. The 5300’s high capacity, added security, and enhanced endurance enable strong performance.

Features:

• Industry’s first 96-layer 3D TLC NAND
• Flex capacity
• AES 256-bit encryption
• TCG Enterprise configurability
• TCG Opal
• Power loss protection for data-at-rest and inflight,
• Enterprise data path protection for user and metadata
• Secure firmware
• Adaptive thermal monitoring
• Easy to install (hot-pluggable)
• Storage Executive SSD management tool
• RAIN

Specifications:

• Capacity: 1.92 TB
• Sequential reads (MB/s): 540
• Sequential writes (MB/s): 520
• Random reads (K IOPS): 95
• Random writes (K IOPS): 70
• Endurance (Total Bytes Written in TB): 17,520
• Interface: SATA (6 Gb/s)
• Form factor: 2.5”
• NAND: Micron 96-layer 3D TLC NAND
• 99.9% Latency: Random read:9 175µs to 200µs; Random write:9 100µs to 650µs
• MTTF: 3 million device hours
• UBER: <1 sector per 10¹⁷ bits read
• Power Consumption:
• Seq Write: <3.9W MAX9
• Seq Read: <3W MAX9
• Temperature (operating): 0-70°C
• Size: 10.04 x 6.98 x 0.7 cm
• Weight: <70g

What’s In The Box:

• Micron 5300 MAX 1.92TB 2.5″ SSD x1
